Pneumatic Quarter-Turn Actuators: Revolutionizing Valve Automation

Introduction

In industrial automation, efficiency, reliability, and cost-effectiveness are essential. Pneumatic quarter-turn actuators have become a key solution for automating ball and butterfly valves, allowing for remote control through compressed air. These actuators are designed to improve system automation, particularly for larger China Control Valves, while maintaining a low investment cost. Their compatibility with ISO 5211 F07 valves and durable construction make them a preferred choice in various industries aiming to optimize operations.

This article explores the features, benefits, and applications of pneumatic quarter-turn actuators, providing valuable insights into their functionality and advantages.

What Are Pneumatic Quarter-Turn Actuators?

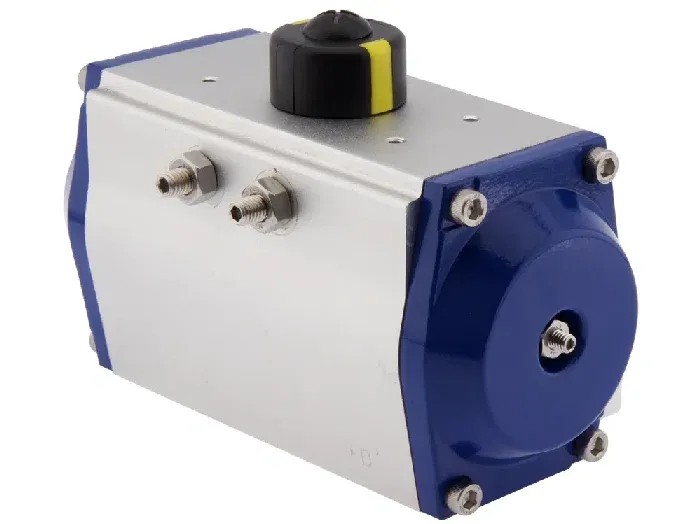

Pneumatic quarter-turn actuators are devices that convert compressed air into rotational motion, typically used to control quarter-turn valves such as ball and butterfly valves. They are designed for reliable and precise operation, ideal for applications requiring automation and remote control.

These actuators are compatible with valves that feature an ISO 5211 mounting flange, ensuring smooth integration. They come equipped with a 17mm star connection for square drive shafts, and adapters are available to accommodate various shaft sizes, offering flexibility for different valve configurations.

Key Features and Specifications

1. Torque Output and Control Pressure
   The actuator generates 74 Nm of torque at 6 bar, with a control pressure range of 6-10 bar, allowing for customizable torque output.
2. Double-Acting Design
   Unlike single-acting actuators, double-acting versions use air for both opening and closing motions, offering enhanced control and reliability.
3. Durable Construction
   The actuator’s anodized aluminum housing and cover ensure durability and corrosion resistance, while the internal rack and pinion mechanism guarantees dependable rotational movement.
4. Temperature Range
   The actuator operates effectively in temperatures from -20°C to 80°C, with an optional FKM seal for higher temperature applications.
5. Air Supply and Ports
   Featuring G 1/4 inch air supply and return ports, the actuator can directly mount a 1/4 inch Namur solenoid valve for easier installation.
6. Position Control and Limit Switches
   The actuator supports position control and limit switch boxes, allowing for precise valve position monitoring and increased system safety.
7. ATEX Certification
   The actuator is ATEX certified (EX II 2GD c), making it safe for use in hazardous environments.

Advantages of Pneumatic Quarter-Turn Actuators

1. Enhanced Control
   The double-acting design offers superior control compared to single-acting actuators, ensuring precise operation.
2. Compatibility
   These actuators are compatible with most ISO 5211 F07 quarter-turn valves, providing versatility for a wide range of applications.
3. High-Speed Operation
   Pneumatic actuators are known for fast opening and closing, boosting process efficiency.
4. Explosion-Proof Design
   The ATEX certification ensures safety in explosive environments, ideal for industries like oil and gas, chemical processing, and mining.

Considerations

While pneumatic actuators have several benefits, there are a few considerations:

• Compressed Air Consumption: Double-acting actuators consume more air than single-acting models, which may increase operational costs.
• Energy Consumption: Pneumatic actuators generally have higher energy consumption compared to electric actuators.
• Dependency on Air Supply: These actuators require a compressed air system, which may limit their use in facilities without air infrastructure.

Applications

Pneumatic quarter-turn actuators are widely used in industries such as oil and gas, chemical processing, water treatment, food and beverage, and pharmaceuticals. Their durability, reliability, and explosion-proof design make them suitable for controlling valves in demanding environments.

Conclusion

Pneumatic quarter-turn actuators are a cost-effective and reliable choice for automating valve control in industrial systems. Their compatibility with ISO 5211 F07 valves, robust construction, and ATEX certification make them ideal for various applications, particularly in hazardous environments. Despite some limitations, such as higher air consumption, the benefits of these actuators—enhanced control, fast operation, and versatility—make them essential in modern industrial automation.Know more about Google SEO Directory
