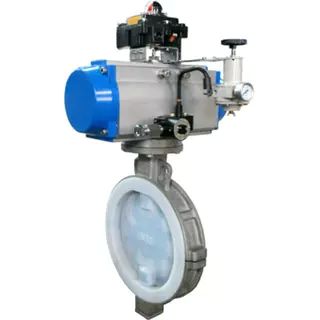

Plastic Lined Butterfly Control Valve: Durable Precision for Corrosive Environments
Introduction
We are a leading control valve manufacturer in China, providing high-quality valves and control actuators customized to meet a wide range of industrial requirements.
Plastic lined butterfly control valves are engineered to deliver outstanding performance in challenging industrial environments. These valves combine advanced sealing technologies with a unique three-dimensional eccentric design, enabling precise flow control, enhanced durability, and low operating torque. Featuring options such as soft seals, hybrid soft-hard multi-level sealing, and full metal sealing, they provide flexible solutions across a wide range of media types and temperature conditions.
The primary goal of plastic lined butterfly control valves is to optimize energy efficiency and extend service life, especially in corrosive or high-pressure applications. Whether in chemical processing, power generation, or wastewater treatment, these valves ensure reliable operation, minimal leakage, and long-term cost-effectiveness.
Key Advantages of Plastic Lined Butterfly Control Valves
Wide Size and Pressure Range
Available from DN15 to DN1000, these valves suit both small and large pipeline systems. They support various pressure classes, including PN6, PN10, PN16, and ANSI Classes 150, 300, and 600, enabling integration with diverse global piping standards.
Superior Corrosion Resistance
Plastic linings such as F46 (PTFE) and PFA provide excellent protection against acids, alkalis, and oxidizers. Valve bodies are manufactured from carbon steel (WCB), 304 stainless steel (CF8), or 316 stainless steel (CF8M), allowing selection based on the corrosivity and mechanical demands of the application.
Leak-Free Operation
Designed to meet stringent ANSI B16.104 Class VI leakage standards, these valves provide zero leakage for applications requiring absolute sealing integrity. For higher pressures and temperatures, metal sealing options compliant with Class IV or V leakage standards are available.
Advanced Three-Eccentric Design
The valve’s three-eccentric structure minimizes friction between disc and seat during operation. This reduces wear on sealing surfaces, prolongs valve life, maintains stable torque during operation, and supports quick opening with equal-percentage flow characteristics—ideal for both throttling and on/off control.
High Precision and Control Adjustability
With a control ratio of up to 100:1, these valves enable precise modulation of flow. They are ideal for dosing systems, multiphase flow control, and chemical injection or treatment processes where fine control is essential.
Reliable Packing and Wide Temperature Range
Multiple packing materials—PTFE, RTFE, flexible graphite—ensure tight sealing and reduce fugitive emissions. The valves perform reliably across temperatures from -30°C up to 150°C, with optional designs available for extreme conditions ranging from -40°C to 570°C.
Additional Performance Features
Low Torque Operation: The eccentric design and lightweight construction reduce torque demands, enabling cost-effective manual or automated actuation.
Compact and Lightweight: Facilitates installation, particularly in space-limited environments.
Multi-Standard Compatibility: Flange connections meet GB/T 12221-2005, ASME B16.10, API 609, and ISO 5752 standards.
Versatile End Connections: Available in raised face (RF), ring joint (RJ), flat face (FM), lug, and wafer styles, compatible with most piping systems.
Wide Media Compatibility: Suitable for water, steam, oil, air, gas, and various chemical fluids.
Applications Across Industries
Chemical Processing: Handling corrosive acids, alkalis, and solvents with reliable corrosion resistance and precise control.
Water & Wastewater Treatment: Regulating clean water and wastewater flows, supporting disinfection and neutralization processes.
Pharmaceutical & Food Industries: Ensuring sanitary operation in CIP/SIP systems and ingredient blending with contamination control.
Petrochemical, Oil & Gas: Providing dependable sealing and corrosion protection in refineries, offshore platforms, and chemical injection systems.
HVAC and Power Generation: Managing steam and cooling water flows for energy-efficient operation and process isolation.
Mining & Metallurgy: Controlling abrasive slurries, acidic leaching solutions, and dust suppression in harsh conditions.
Conclusion
Plastic lined butterfly control valves offer a robust solution for modern industrial systems demanding high performance, chemical resistance, and precise control. Their advanced three-eccentric design, superior sealing technologies, and versatile material options deliver long-lasting, leak-free performance with minimal maintenance.
From pharmaceutical labs to large petrochemical plants, these valves address diverse fluid control challenges in corrosive and high-pressure environments. Their combination of energy efficiency, zero leakage, and adaptable operation makes them indispensable in next-generation process automation and fluid management.
As a leading manufacturer of plastic lined butterfly control valves in China, we are dedicated to innovation, quality, and delivering dependable valve solutions worldwide.Know more about Google SEO Directory
