Master Shower Drain Diagrams, Avoid Mistakes

Learn to read a shower drain diagram, avoid reno mistakes, and see why Grande Prairie trusts Gray Electric & Plumbing for expert plumbing help.

Ever stepped into the shower and realized the water’s rising like a mini flood? Yeah… me too. Turns out, your shower drain plumbing diagram is more than a bunch of lines and circles, it’s the map that keeps your bathroom from turning into a swamp.

Honestly, I used to ignore stuff like this. Let the plumber deal with it, I’d say. Until I messed up a reno job and had to redo the whole drain layout twice. Total facepalm.

So, if you’re planning a bathroom upgrade or even just curious how things work under the tiles, stick with me. I’ll walk you through the key parts of a shower drain plumbing diagram, what not to mess up, and how to save yourself some serious headaches.

What the Heck Is a Shower Drain Plumbing Diagram?

Okay, before we dive into elbows, traps, and slope angles, let’s break it down.

A shower drain plumbing diagram is a roadmap. It shows where all the pipes go, how the water flows, and what parts connect where. Think of it like Google Maps for your bathroom.

I remember the first time I looked at one—I thought, “I need a PhD to read this thing!” But really, it’s not that bad once you get the hang of the main parts:

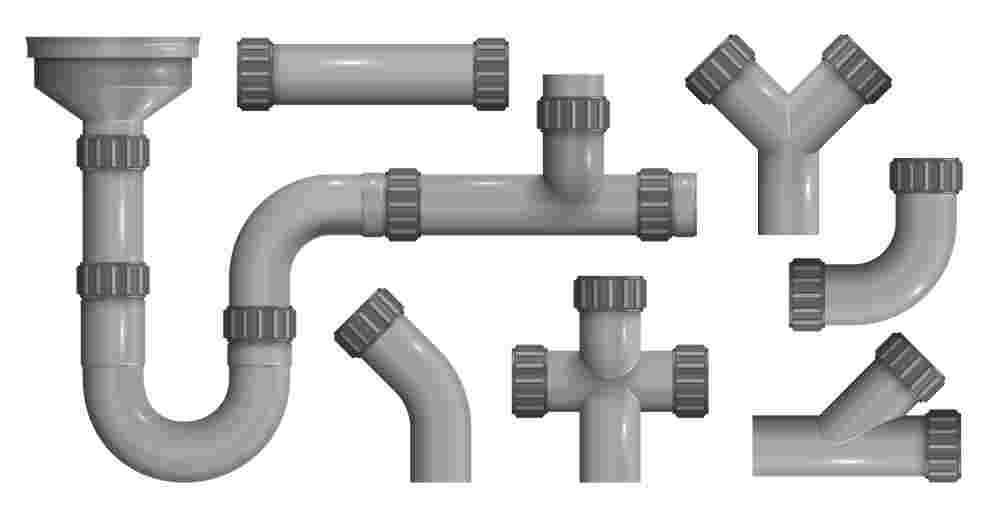

• Drain Trap (P-trap) – catches gross stuff so it doesn’t clog your main line

• Vent Pipe – lets sewer gas escape so your bathroom doesn’t smell like a skunk

• Drain Line – sends water out to the sewer system

• Slope – yep, your pipes need a downhill run so water doesn’t just sit there

What blew my mind? The slope. If you don’t tilt that pipe just right—1/4 inch per foot—you can end up with standing water. Or worse, leaks in the ceiling below. Ask me how I know.

My First DIY Disaster (And What I Learned)

So here’s the scene: I’m all proud, tools in hand, thinking I’m the next HGTV star. I rip up my old shower, laid out the new plumbing, slapped it together… and it looked perfect. Until I tested it.

Cue: water leaking through the floorboards. Into the kitchen. On a Sunday.

Turns out, I skipped checking the vent pipe and botched the slope. Classic rookie mistake. I had to call in pros from Gray Electric & Plumbing Services here in Grande Prairie to fix my mess—and yeah, it cost more than if I’d just hired them in the first place.

Lesson learned? Don’t underestimate:

• The slope – again, 1/4 inch per foot is magic

• Vent connection – without it, water glugs and drains slow

• Tight seals – no “good enough” joints allowed

It was frustrating, but hey—I now double-check everything. And I have major respect for plumbing diagrams now.

Mistakes That’ll Cost You

Alright, wanna avoid my pain? Here’s the rundown of classic mistakes—and how to dodge ‘em like a pro:

• Wrong slope – too flat? Water hangs. Too steep? Water outruns debris = clog city.

• Missing vent – suddenly you’ve got gurgles and sewer smell = gross.

• Weird angles – sharp bends, slow flow, and trap gunk. Use sweep elbows instead.

• Mismatched materials – mixing ABS and PVC without the right glue = leak city.

I made at least three of those mistakes. Felt like a fool. But hey, you live and learn. Or you read this and don’t learn the hard way.

Honestly, I keep a basic diagram on hand now anytime I do renos. And if I get stuck, I just call in Gray Electric & Plumbing. They’re local, they know the codes, and they explain stuff without making you feel dumb.

Wrap-Up:

Look I learned the hard way that a shower drain plumbing diagram isn’t just a boring drawing. It’s your lifeline to a working, non-flooded bathroom. When you get it right, everything just works. Smooth, quiet, clean.

If you’re in Grande Prairie and don’t want to roll the dice with your next reno, call the folks at Gray Electric & Plumbing Services. They’re pros at diagrams, installs, and even explaining things in plain English (like this blog!). Whether it’s for your home, shop, or rental unit, they’ve got you covered.
