Bellows Globe Control Valve: Precision, Safety, and Performance in Flow Control
Introduction
We are a leading control valve manufacturer in China, providing high-quality valves and control actuators expertly designed to meet a wide range of industrial applications.
In industries where safety, environmental protection, and process reliability are crucial, even minor leaks can cause serious problems. Fields such as petrochemical, pharmaceutical, power generation, and semiconductor manufacturing require strict compliance with safety and emission standards. Bellows globe control valves have become essential in these demanding settings, offering precise flow control and zero fugitive emissions.
What Is a Bellows Globe Control Valve?

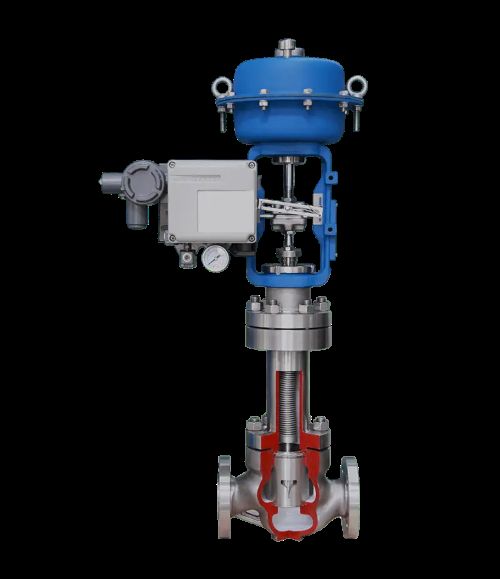

A bellows globe control valve is a type of linear motion valve used to regulate fluid flow with high accuracy. Unlike traditional globe valves, it includes a metallic bellows seal between the valve stem and body. This bellows expands and contracts as the stem moves, creating a hermetic seal that isolates the process fluid from the environment, preventing any leakage.
Typically made of corrosion-resistant stainless steel or Inconel, the bellows is welded securely to the valve stem and bonnet. This welded construction eliminates leak paths, ensuring reliable sealing even under extreme pressure, temperature, and chemical conditions.
Why Use a Bellows Seal?
Traditional globe valves rely on packing material around the stem to prevent leaks, but packing can wear, degrade, or loosen over time, especially under vibration, thermal cycling, or corrosive exposure. This can lead to fugitive emissions, posing safety and environmental risks.
Bellows globe control valves eliminate these issues by replacing packing with a metallic bellows seal. Key benefits include:
Hermetic Sealing: Provides zero leakage, meeting strict regulatory standards such as EPA, ISO 15848, and TA-Luft.
Low Maintenance: No need for periodic packing adjustments or replacements, reducing labor and downtime.
Extended Service Life: Bellows are durable, often rated for tens of thousands of full stroke cycles.
Operational Safety: Ideal for hazardous, toxic, or flammable media where leakage is unacceptable.
Key Design Features
Metallic Bellows Assembly: Thin-walled, flexible, and corrosion-resistant, tested to helium leak-tight standards.
Non-Rotating Stem: Prevents twisting stress on the bellows, improving durability and stability.
Welded Connections: Minimizes threaded joints, ensuring no leak paths in critical areas.
Vacuum-Brazed Seat: Permanently fixed seat eliminates loosening issues common with threaded seats.
Backup Packing Seal: Provides secondary protection and often includes leak detection ports for early warning.
How the Valve Works
Globe valves control flow by moving a plug (disc) against a stationary seat inside a globe-shaped body. The stem, connected to an actuator, moves the plug to modulate flow. The bellows seal surrounds the stem within the bonnet, maintaining a sealed environment regardless of stem movement.
Internal trim designs like cage-type trims guide the plug, allow for replaceable components, and can include noise reduction or anti-cavitation features—enhancing performance and longevity.
Advantages
Zero leakage with helium-tested sealing
Compliance with stringent emissions regulations
Reduced maintenance and operating costs
Long-lasting performance in harsh environments
Precise flow control with stable, repeatable operation
Suitable for liquids, gases, vapors, and slurries over wide pressure and temperature ranges
Typical Applications
Bellows globe control valves are widely used in industries demanding tight shutoff and emission control, including:
Petrochemical and Chemical Plants: Handling corrosive, toxic, or flammable fluids
Power Generation: Controlling boiler feedwater and high-pressure steam
Pharmaceutical and Food Industries: Maintaining sterile and cleanroom conditions
Semiconductor Manufacturing: Managing ultra-pure gases and vacuum systems
Nuclear Facilities: Ensuring high-integrity containment of radioactive fluids
Cryogenic Systems: Controlling liquefied gases like oxygen and nitrogen at very low temperatures
Conclusion
As environmental regulations tighten and safety demands grow, bellows globe control valves provide a robust, maintenance-friendly solution for zero-leakage flow control. Their metallic bellows design ensures absolute sealing integrity, protecting people, processes, and the environment across a range of critical industries. These valves represent the pinnacle of reliable, precise, and emission-free valve technology.Know more about Google SEO Directory
