Single Seat Globe Control Valve vs. Cage Guided Globe Control Valve: Key Differences and Applications
In industrial fluid control, selecting the right valve type is essential to ensuring operational efficiency, safety, and durability. Among the many valve designs, the Single Seat Globe Control Valve and the Cage Guided Globe Control Valve are two of the most commonly used models, each tailored for specific applications and operating conditions. This article compares these two valve types by exploring their definitions, structural features, applications, advantages, and limitations.
A Single Seat Globe Control Valve features a valve body with a single seat and a movable plug that regulates flow. The valve trim (plug and seat ring) is interchangeable, allowing customization for different fluids and flow rates. This design prioritizes tight shut-off performance and is suitable for precise flow regulation.
Widely used in industries requiring reliable sealing and moderate pressure control, such as:
Chemical processing
Power generation
Oil and gas
Water treatment
It is effective for controlling liquids and steam in processes where leak-tightness and straightforward operation are required.
Simple valve body with one seat and one plug.
Plug connected to a stem that moves vertically to open or close the valve.
Materials typically include carbon steel, stainless steel, and alloys designed for high-pressure or temperature environments.
The single-seat design results in unbalanced forces under high-pressure conditions, potentially reducing sealing effectiveness.
Limited pressure drop capability compared to balanced valve designs.
Simple design and easy maintenance.
Effective tight shut-off and flow regulation.
Flexible trim modifications for varied fluid characteristics.
Versatile in liquid and steam services.
Unbalanced forces under high pressure can affect performance.
Less suitable for applications involving high-pressure drops.

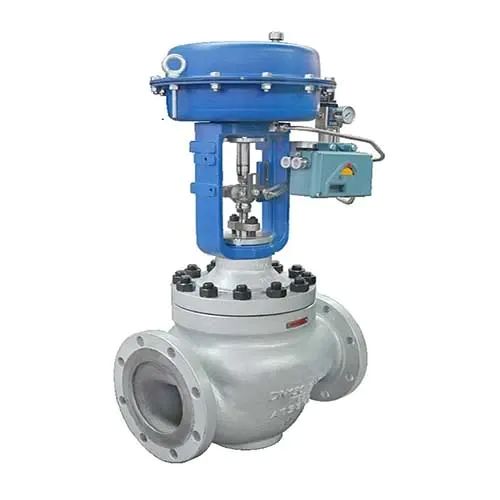

The Cage Guided Globe Control Valve incorporates a cage structure that surrounds and guides the valve plug. This design balances hydraulic forces on the plug, reducing unbalanced loads and enabling precise control even in demanding conditions like high pressure, cavitation, and noise.
Ideal for high-pressure, high-temperature, or critical process control in sectors such as:
Power plants
Chemical manufacturing
Oil refining
Natural gas processing
This valve excels where cavitation and noise mitigation are priorities.
Cage surrounds the plug, guiding its motion and balancing fluid forces.
May include balance ports to further reduce unbalanced forces.
Trim options include single or twin seats, optimizing leakage and flow characteristics.
Special trim designs help minimize cavitation damage and noise generation.
Temperature ranges depend on seat type:
Metal seats: -196°C to +538°C
Soft seats: -45°C to +200°C
Superior performance under high-pressure and high-temperature conditions.
Effectively reduces cavitation and noise.
High precision in flow control, adaptable with various trims.
Suitable for extreme and diverse fluid types.
More complex design with higher initial cost.
Requires specialized maintenance and expertise.
| Feature | Single Seat Globe Valve | Cage Guided Globe Valve |
|---|---|---|
| Design | Simple, single seat and plug | Complex cage structure with guided plug |
| Flow Control | Basic, moderate pressure | Precise, suitable for high pressure |
| Pressure Drop Handling | Limited | Excellent for high-pressure drops |
| Cavitation & Noise | Not ideal | Effective mitigation |
| Applications | Liquid and steam, moderate pressure | High-pressure, high-temp, critical processes |
| Advantages | Cost-effective, easy maintenance | Precise, durable, noise & cavitation resistant |
| Limitations | Unbalanced forces at high pressure | Complex, higher cost and maintenance |
Single Seat Globe Valve: Best for moderate-pressure, straightforward flow regulation, and tight shut-off applications where cost and ease of maintenance are priorities.
Cage Guided Globe Valve: Optimal for high-pressure, cavitation-prone, or noise-sensitive environments requiring precise flow control and enhanced durability.
Understanding the differences enables selection of the right valve for specific process needs, balancing performance, reliability, and cost-efficiency.
