Flow Direction of Eccentric Plug Valves: Understanding Key Factors for Efficiency and Longevity

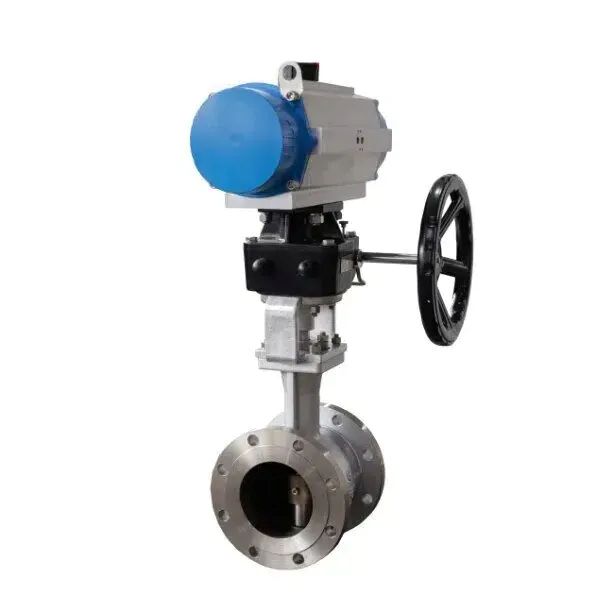

Eccentric plug valves are a specialized type of rotary control valve designed for precise fluid flow regulation in demanding industrial applications. These valves are particularly effective in handling abrasive, viscous, and other hard-to-manage fluids such as slurries, crude oil, and corrosive chemicals. Their unique design features an eccentric or offset plug, which provides several advantages over traditional plug valves, including reduced friction, improved sealing, and extended service life.
Unlike conventional plug valves where the plug moves directly along the flow path, the plug in an eccentric plug valve is offset from the centerline of the valve. This design causes the plug to rotate in a cam-like motion. As the valve opens, the plug gradually pivots away from the seat, reducing friction between the two components. This motion minimizes wear and enables smoother flow, which is especially important in handling thick or abrasive liquids.
When the valve closes, the plug rotates back into place, aligning with the seat to form a secure seal. The gradual seating process helps prevent sudden pressure buildup, ensuring an effective seal with minimal risk of leakage. The eccentric design thus enables precise control over fluid flow while ensuring a longer lifespan for the valve due to the reduced wear on the internal parts.
The correct flow direction is crucial to the performance and longevity of eccentric plug valves. The valve body typically features a marking indicating the preferred flow direction. When installed correctly, the valve operates as intended, offering better sealing, minimal friction, and efficient flow control. Conversely, installing the valve in the wrong orientation can lead to several issues:
Improper Sealing: A misaligned valve may fail to create a tight seal, leading to fluid leakage.
Increased Wear: Incorrect alignment results in greater friction between the plug and the seat, accelerating wear and reducing the valve’s service life.
Higher Pressure Drop: Misalignment can increase resistance to fluid flow, resulting in higher pressure drops and reduced system efficiency.
Eccentric plug valves are invaluable in industries where fluid control is critical, particularly in challenging environments. They are commonly used in:
Mining and Slurry Handling: These valves regulate the flow of slurry, a mixture of water and fine particles, without clogging or excessive wear.
Petroleum Refining: In refineries, eccentric plug valves control the flow of crude oil and other petroleum products under high-pressure conditions.
Power Generation: These valves manage the flow of steam and water in power plants, where high-pressure and high-temperature conditions are common.
Pulp and Paper Manufacturing: In this sector, the valves control the flow of chemicals and liquids during processes like pulping and bleaching.
Food and Beverage Processing: Their ability to handle viscous fluids makes them ideal for managing the flow of ingredients in food and beverage manufacturing.
Eccentric plug valves offer several advantages over traditional control valves:
Reduced Friction: The eccentric design minimizes direct contact between the plug and the seat, leading to less wear and tear.
Improved Flow Control: The cam-like motion allows for more precise regulation of fluid flow.
Higher Durability: These valves are built to handle harsh conditions and resist corrosion and abrasion.
Lower Maintenance: With reduced friction and wear, maintenance requirements are significantly lower, leading to cost savings.
Versatility: Eccentric plug valves can handle a wide variety of fluids, from slurries to highly viscous liquids and gases.
Eccentric plug valves are an essential tool in industrial flow control, offering precise regulation, durability, and reduced maintenance. Ensuring proper flow direction during installation is critical for maximizing the valve’s performance and longevity. These valves are particularly valuable in industries like mining, petroleum refining, power generation, and food processing, where their ability to handle difficult fluids without excessive wear makes them a preferred choice. With their smooth operation and extended service life, eccentric plug valves are an excellent investment for demanding applications.Know more about Google SEO Directory
