A Comprehensive Guide to 3-Way Control Valves: Types, Operation, and Selection
A Comprehensive Guide to 3-Way Control Valves: Types, Operation, and Selection
Introduction
In industrial automation and process engineering, control valves are fundamental components for regulating fluid flow. Among them, three-way control valves stand out for their versatility in mixing or diverting fluid streams. Widely used in HVAC, chemical processing, power generation, and water treatment, these China Control Valves enable precise temperature control, batch processing, and system balancing with simplified design and fewer components.
This article explores the working principles, types, advantages, and key selection criteria of 3-way control valves.

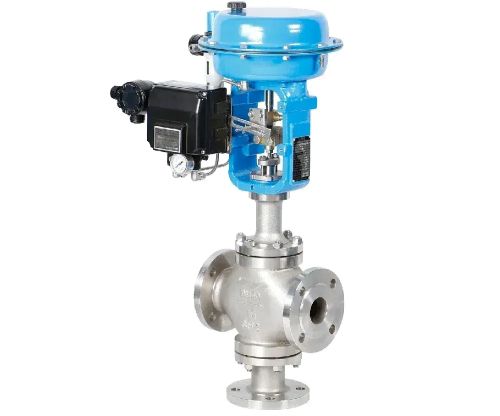

What Is a 3-Way Control Valve?
A 3-way control valve features three ports and is designed to direct fluid flow within a system by performing either of two main functions:
Mixing: Combines two inlet streams into a single outlet.
Diverting: Splits one inlet stream into two separate outlets.
Often shaped like a “T,” these valves enable dynamic flow redirection, minimizing the need for multiple valves and simplifying maintenance.
Industries such as HVAC, power plants, food processing, and oil and gas rely on these valves for efficient and stable process control.
Types of 3-Way Control Valves
Balanced Three-Way Control Valve
Balanced valves are engineered for both mixing and diverting with stable and precise control. Internal balancing mechanisms reduce the effect of pressure fluctuations, enabling accurate modulation even under high flow rates or variable system conditions. These valves are common in critical applications such as steam control, thermal oil circuits, and chemical reactors.
Applications:
HVAC heating/cooling regulation
Chemical reactors temperature control
Steam pressure modulation
Unbalanced Three-Way Control Valve
Unbalanced valves are simpler and generally used for mixing applications. Their design makes them less suitable for precise flow-splitting or continuous modulation but offers a cost-effective solution for basic mixing or on-off diverging needs.
Applications:
Batch processing mixing
Utility water mixing
Low-pressure, non-critical processes
How Do 3-Way Valves Work?
At the heart of a 3-way valve is a movable plug or ball that redirects flow between the three ports. Control mechanisms—manual, pneumatic, or electric—adjust the valve position to mix two inlets or divert flow from one inlet to two outlets.
Two common internal port configurations exist:
L-Port: Simple on-off switching between two outlets.
T-Port: Allows simultaneous partial flow among all three ports for mixing or diverting.
When integrated with actuators and control systems, these valves provide dynamic and responsive control essential for modern industrial processes.
Benefits of 3-Way Control Valves
Using a single 3-way valve instead of multiple two-way valves offers numerous advantages:
System Simplification: Fewer valves and fittings reduce complexity.
Space Efficiency: Compact footprint suits tight installations.
Lower Maintenance: Fewer parts reduce wear and leakage points.
Improved Accuracy: Balanced designs enable precise control.
Cost Savings: Reduced installation and operational expenses.
Selecting the Right 3-Way Control Valve
Key factors to consider include:
Fluid Type: Chemical compatibility, viscosity, and particulate content influence material choice and valve design.
Pressure and Temperature: Valves must be rated to withstand system extremes; balanced designs often preferred for high-pressure or thermal services.
Valve Sizing: Proper Cv sizing ensures stable control and avoids flow restrictions or instability.
Connection Type: Flanged, threaded, or welded ends must match existing piping.
Actuation Method: Manual, pneumatic, or electric actuators should suit control needs and integration with automation systems.
Safety and Compliance: Consider pressure relief, shutoff performance, and adherence to standards like API, ASME, ISO, and CE.
Common Applications
3-way valves are indispensable across industries:
HVAC for heating/cooling water regulation
Chemical plants for blending and flow diversion
Food and beverage for sanitary mixing
Power generation for steam conditioning and turbine bypass
Pharmaceuticals for precise dosing and sterile processing
Conclusion
Three-way control valves combine efficiency, precision, and simplicity, enabling effective flow mixing and diversion in various industrial processes. By understanding valve types—balanced versus unbalanced—and considering fluid properties, operating conditions, and control needs, engineers can optimize system design, improve performance, and reduce costs.
As industries advance towards greater automation and sustainability, 3-way control valves will remain vital components for smarter, more reliable fluid management.Know more about Google SEO Directory
